Exact model appearance and included components require confirmation.
Water Well Drilling Rigs

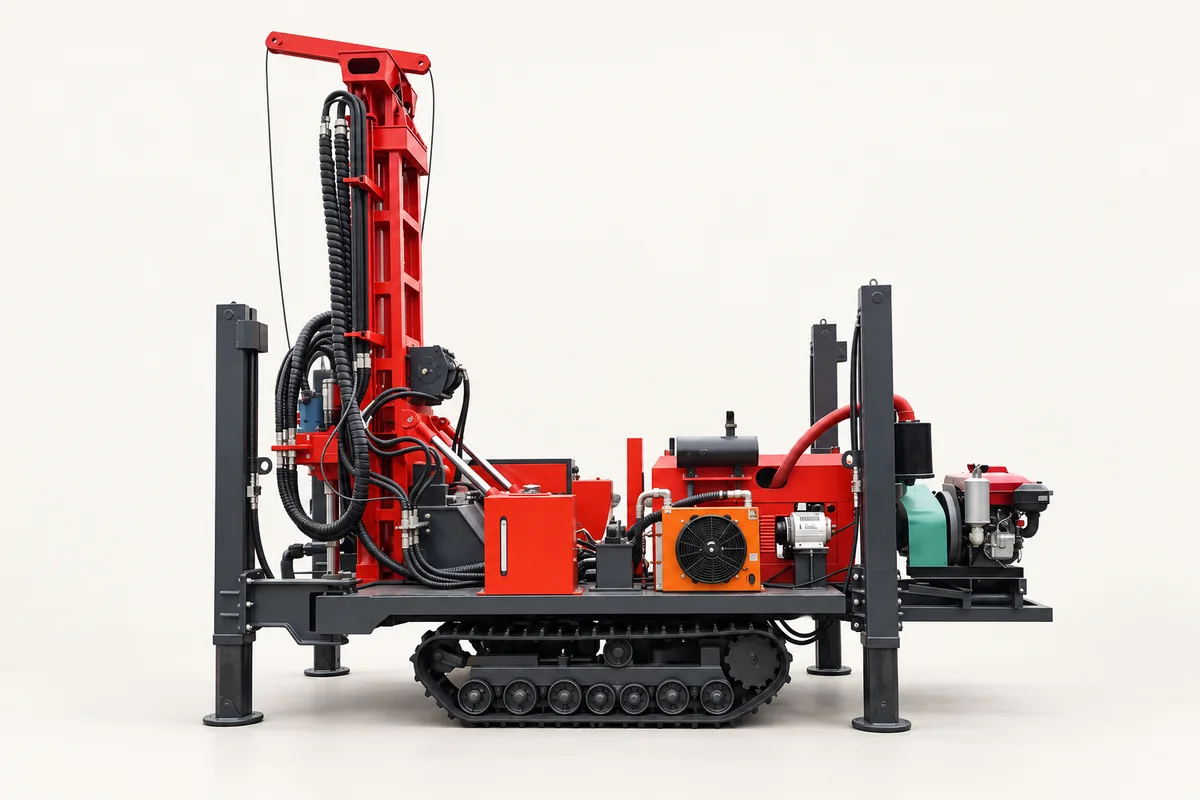

200 m Crawler Water Well Rig
Discuss this water-well configuration against your target depth, borehole diameter and ground conditions. A crawler configuration for discussing movement and positioning across a drilling site. Confirm access conditions, transport dimensions and stabilizer requirements with the proposed setup.
- Listed depth
- 200 m
- Mounting
- Crawler
- Equipment family
- Water Wells
- Supply scope
- Configured to the project
Final configuration, pricing, delivery and support terms are confirmed for the specific order.
Configuration details.
| Equipment family | Water Well Drilling Rigs |
|---|---|
| Mounting configuration | Crawler |
| Listed drilling depth | 200 m |
| Listed drilling diameter | 105–180 mm |
| Operating air pressure in listing | 1.25–3.5 MPa |
| Air consumption in listing | 16–55 m³/min |
| Rotary speed | 85 / 170 r/min |
| Drill rod length | 3 m |
| Recommended rod diameter | 76 mm |
| Listed engine power | 70 kW |
| Listed machine weight | 4.5 t |
| Listed overall dimensions | 3.4 × 1.7 × 2.2 m |
These supplier-listed values describe a configuration, not a guarantee across all hole sizes and ground conditions. Confirm the final technical sheet and supply scope with your quotation.
Configuration evidence & enquiry sheet.
Supplier listing reviewed 17 October 2026
The torque entry lacks its unit, and the drilling-efficiency entry uses m³/h; neither is reproduced as a verified torque or penetration rate. Air pressure and consumption are listing ranges, not a compressor selection point. Confirm the actual hammer / rods and packed configuration.
Published values remain supplier catalogue claims. Obtain the accepted technical sheet for the offered revision before ordering.
- Target depth / diameter sequence; ground report; site access
- Compressor pressure AND delivered flow; model-specific hammer data; hoses, connectors and lubrication
- Included tools, auxiliaries, spares and documentation
- Actual packing, inspection, delivery and support responsibilities
Plan around the job.
Water supply projects
Discuss target well depth, finished hole diameter and the expected geological sequence.
Agricultural water development
Review site access, transport requirements and the supporting drilling package.
Contract drilling work
Confirm the range of jobs, relocation method and service parts required for your work.
Discuss the package.
Confirm what is included in the quotation. Supporting tools and attachments are selected to match the equipment and your planned work.
- Rig and mounting configuration
- Drill rods, bits and casing
- Air compressor or mud pump, as required
- Spare parts and operating documentation
Before you choose.
What should I include in my inquiry?
Share your target depth, borehole diameter, ground conditions and project destination. For sampling, include your core or sample requirements.
Does the listed capacity apply to every job?
No. Capacity depends on the specific configuration and working conditions. Confirm the relevant depth, diameter, tooling and power combination in the final technical sheet.
Can I include tools and spare parts?
Include your requirements in the inquiry so compatibility, availability and the included supply scope can be checked with the manufacturer.
How are shipping and warranty terms agreed?
Delivery, inspection, warranty coverage and support responsibilities are agreed for the specific order and recorded in the quotation or contract.
