Water Well Drilling Rigs

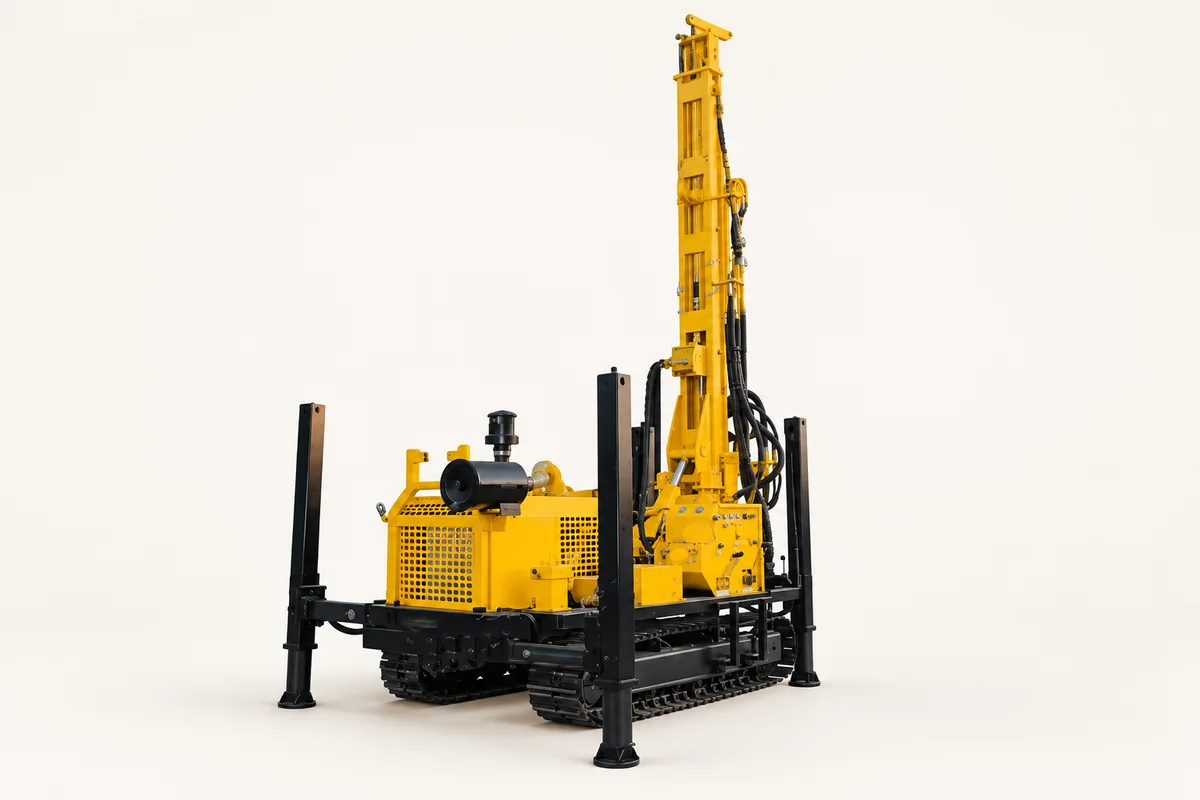

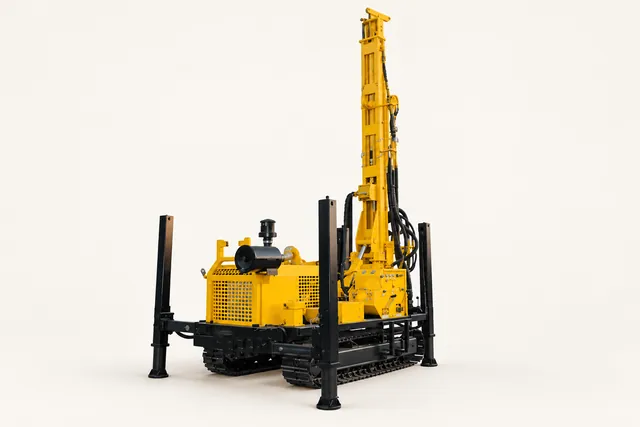

180 m Crawler Drilling Rig
Discuss this water-well configuration against your target depth, borehole diameter and ground conditions. A crawler configuration for discussing movement and positioning across a drilling site. Confirm access conditions, transport dimensions and stabilizer requirements with the proposed setup.
- Listed depth
- Confirm capacity
- Mounting
- Crawler
- Equipment family
- Water Wells
- Supply scope
- Configured to the project
Final configuration, pricing, delivery and support terms are confirmed for the specific order.
Configuration details.
| Equipment family | Water Well Drilling Rigs |
|---|---|
| Mounting configuration | Crawler |
| Depth rating | Unresolved: 180 m heading / 220 m table |
| Listed drilling diameter | 130–294 mm; no confirmed depth pairing |
| Listed machine dimensions | 3800 × 1700 × 2350 mm |
| Listed weight | 4.2 t |
| Listed engine power | 60 kW |
| Listed rotary speed | 48–70 r/min |
| Listed rotary torque | 4200–5600 N·m |
| Working air pressure in listing | 1.7–2.5 MPa |
The listing title and technical table disagree on drilling depth. The drilling capacity is intentionally left unconfirmed here.
Configuration evidence & enquiry sheet.
Supplier listing reviewed 17 October 2026
The heading says 180 m, while the technical table says 220 m. Both values are withheld as a confirmed rating and depth filtering stays disabled. The air-consumption unit is corrupted and the climbing field lacks a unit; neither is silently normalised. Obtain the correct depth / diameter schedule and compressor duty for the offered version.
Published values remain supplier catalogue claims. Obtain the accepted technical sheet for the offered revision before ordering.
- Target depth / diameter sequence; ground report; site access
- Compressor pressure AND delivered flow; model-specific hammer data; hoses, connectors and lubrication
- Included tools, auxiliaries, spares and documentation
- Actual packing, inspection, delivery and support responsibilities
Plan around the job.
Water supply projects
Discuss target well depth, finished hole diameter and the expected geological sequence.
Agricultural water development
Review site access, transport requirements and the supporting drilling package.
Contract drilling work
Confirm the range of jobs, relocation method and service parts required for your work.
Discuss the package.
Confirm what is included in the quotation. Supporting tools and attachments are selected to match the equipment and your planned work.
- Rig and mounting configuration
- Drill rods, bits and casing
- Air compressor or mud pump, as required
- Spare parts and operating documentation
Before you choose.
What should I include in my inquiry?
Share your target depth, borehole diameter, ground conditions and project destination. For sampling, include your core or sample requirements.
Does the listed capacity apply to every job?
No. Capacity depends on the specific configuration and working conditions. Confirm the relevant depth, diameter, tooling and power combination in the final technical sheet.
Can I include tools and spare parts?
Include your requirements in the inquiry so compatibility, availability and the included supply scope can be checked with the manufacturer.
How are shipping and warranty terms agreed?
Delivery, inspection, warranty coverage and support responsibilities are agreed for the specific order and recorded in the quotation or contract.
