Exact model appearance and included components require confirmation.
Core & Sampling Rigs

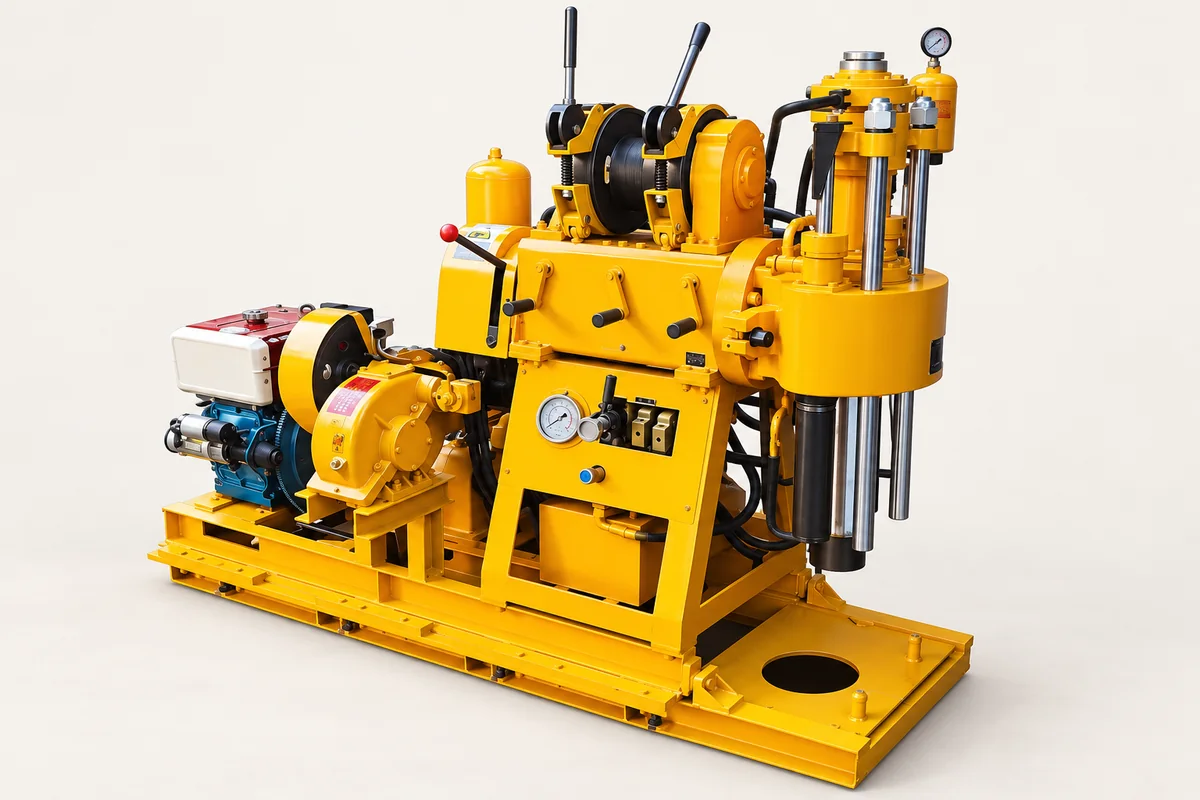

300 m Core Drilling Rig, 14.7 kW / 42 mm Rod
Discuss this core and sampling configuration against the required sample, rod system and site access. A portable or skid-based configuration for geological investigation. Match the drilling method, rod size and sample requirements to the planned work.
- Model / class
- 300 m listing
- Mounting
- Portable / skid
- Equipment family
- Core & Sampling
- Supply scope
- Configured to the project
Final configuration, pricing, delivery and support terms are confirmed for the specific order.
Configuration details.
| Equipment family | Core & Sampling Rigs |
|---|---|
| Mounting configuration | Portable / skid |
| Model reference in supplier body | GY-200; configuration identity to confirm |
| Depth / hole pairs in table | 60 m / 300 mm; 225 m / 76 mm; 295 m / 46 mm |
| Listed rod diameters | 50 / 42 mm |
| Weight excluding engine | 670 kg |
| Listed maximum torque | 2000 N·m |
| Listed feeding travel | 400 mm |
| Cylinder feed / lift ratings | 29 / 39 kN |
| Listed power alternatives | 14.7 kW diesel / 15 kW electric |
The listing title says 300 m while the technical table uses depth / borehole combinations up to 295 m. Confirm the intended model and capacity.
Configuration evidence & enquiry sheet.
Supplier listing reviewed 17 October 2026
The title says 300 m, the teaser mentions 380 m and the technical table goes to 295 m; depth filtering remains disabled. The body refers to GY-200 and should be reconciled with the offered model. Published pairs are table entries, not proof of a separate verified factory model. A dimension entry without units is withheld; tooling compatibility needs confirmation.
Published values remain supplier catalogue claims. Obtain the accepted technical sheet for the offered revision before ordering.
- Sample / core objective, hole depths, inclination and ground
- Offered model revision, power unit, feed, spindle and hoist arrangement
- Included tools, auxiliaries, spares and documentation
- Actual packing, inspection, delivery and support responsibilities
Plan around the job.
Geological investigation
Confirm core size, sample requirements and the drill-string system.
Engineering site sampling
Review borehole inclination, site access and the selected sampling method.
Exploration work
Discuss depth and borehole combinations rather than a model name alone.
Discuss the package.
Confirm what is included in the quotation. Supporting tools and attachments are selected to match the equipment and your planned work.
- Core barrel and bit selection
- Compatible rods and sampling tools
- Drilling fluid or air support, as required
- Power unit, spare parts and documentation
Before you choose.
What should I include in my inquiry?
Share your target depth, borehole diameter, ground conditions and project destination. For sampling, include your core or sample requirements.
Does the listed capacity apply to every job?
No. Capacity depends on the specific configuration and working conditions. Confirm the relevant depth, diameter, tooling and power combination in the final technical sheet.
Can I include tools and spare parts?
Include your requirements in the inquiry so compatibility, availability and the included supply scope can be checked with the manufacturer.
How are shipping and warranty terms agreed?
Delivery, inspection, warranty coverage and support responsibilities are agreed for the specific order and recorded in the quotation or contract.
