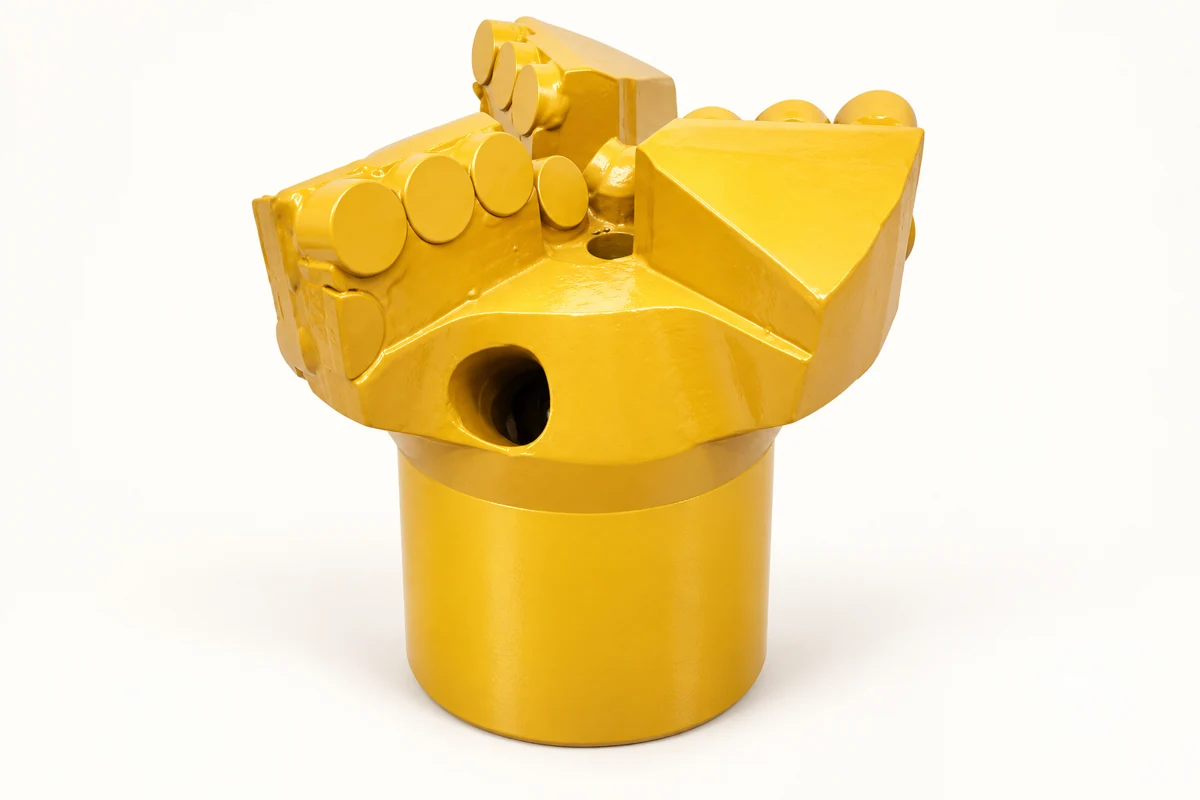

Three-Wing PDC Drag Bits.
Match the hole, connection and rotary drilling arrangement.
Provide the planned hole diameter, ground information, rig rotation arrangement and circulation proposal. Have the supplier confirm the exact cutting design and connection for the intended rotary configuration.
Supplier listing / reviewed 18 October 2026
Published fields to check.
These are selected catalogue fields from the source below. They do not establish availability, an accepted specification or compatibility with your machine.
| Field | Supplier-listed value |
|---|---|
| Listed body construction | Steel body |
| Selected three-wing table diameters | 76, 89, 102, 127 and 152 mm |
| Other listed wing arrangements | Four- and five-wing rows exist for selected sizes; quote separately |
| Connection / operating limits | Exact thread, drawings and model-specific limits required |
What still needs confirmation?
The summary size range and full dimensional table do not agree at their endpoints. We publish a subset of explicit three-wing table rows, rather than resolving the discrepancy by inference. A three-wing PDC drag bit is not a DTH button bit or a core-recovery barrel / bit system. No drilling-speed, lifetime or universal hard-rock performance claim is adopted.
Build a useful enquiry.
Bring these details to the supplier review so that quotations can describe the same item and scope.
- Required finished hole diameter and formation information
- Actual bit drawing, thread gender / standard and adapter details
- Offered rig torque / speed envelope and circulation arrangements
- Quantity, spare bits, inspection photos and accepted configuration reference
Confirm the supplied scope.
Request an itemised response covering the offered model revision, drive or adapters, quantities, drawings, inspection evidence and spare parts. Identify included, optional and excluded items.
Have the supplier confirm the exact configuration in writing before ordering. Pricing, lead time, warranty and shipping arrangements belong in the actual offer.
Compare Quotation Scope →Related rig enquiries.
These links identify drilling projects where tooling or circulation needs review. They are not a tested-fit or approved compatibility list.
Source and evidence scope.
Manufacturer listing reviewed on 18 October 2026: Jinzhou City Shitan Machinery — Three-Wing PDC Drag Bits. The listing supports only the attributed fields on this page. Procurement questions and related-rig routes are RigSpan editorial guidance. Supplier certifications, delivery promises and performance slogans have not been adopted as verified RigSpan claims.
Identify the item before ordering.
Share the part, existing machine, drawings and quantity for a configuration discussion.
Identify, record and request support.
Keep the machine identity, applicable manual and observed symptoms together for a supplier review.
